Navistar OnCommand Service Manual Set
Navistar OnCommand provides full coverage for Navistar trucks from 1992-present. This will cover the trucks bumper to bumper. Includes wire diagrams, electronic diagnostic information, engine overhaul information, brakes, chassis, frame, and more.

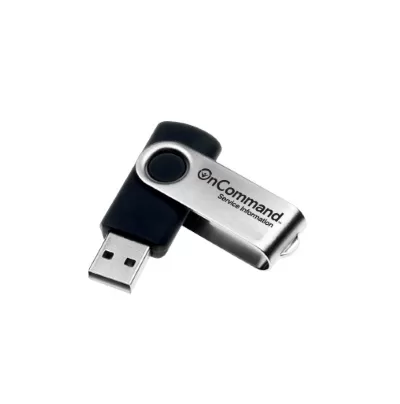

Information comes loaded on a flash drive. If purchased in printed form your cost would exceed $4,000. This is a best value!
Navistar OnCommand Coverage:
Paystar 5000
Models:
- 5000
- F5000
S Series
Models:
- 1600
- 1700
- 1800
- 1900
- 2100
- 2200
- 2500
- 2600
3000 Series
4000 Series
Models:
- 4600
- 4700
- 4700LP
- 4900
8000 Series
Models:
- 8100
- 8200
- 8300 (7100 similar)
9000i Series
Models:
- 9000
- 9100
- 9200
- 9300
- 9300SBA
- 9400
- 9600
- 9700
CO9000
Models:
- CO9600
- CO9700
4000 / DuraStar
Models:
- 4300
- 4400
5000i / PayStar
Models:
- 7300
- 7400
- 7500
- 7600
7000 / WorkStar
Models:
- 7300
- 7400
- 7500
- 7600
9000i
Models:
- 9100i
- 9200i
- 9400i
- 9900i
HX Series
Models:
- 515
- 520
- 615
- 620
HV Series
Models:
- 507
- 513
- 607
- 613
LT Series
RH Series
MV Series
CV Series
Diagnostic Troubleshooting Manual Contents
- Engine Systems
- Engine Identification
- Air Management Systems
- Fuel Management System
- Fuel Supply System
- Engine Lubrication System
- Engine Cooling System
- Electronic Control System
- Engine & Vehicle Sensors & Switches
- Intake Throttle Valve
- Diamond Logic Brake System
Engine & Vehicle Features
- Standard Features
- Optional Features
- Diagnostic Software Operation
- Electronic Service Tool Diagnostics
- Communications
- DTC’s
- Session Files
- Snapshots
- Diagnostic Tests
- Reset Engine Change Oil Message
- General Info
Engine Symptoms Diagnostics
- Coolant System Diagnostics(EGR cooler, injector sleeve inspection, etc)
- Fuel System Diagnostics
- Lubrication System Diagnostics
- Hard Start & No Start Diagnostics
- Required Test Procedures
- Special Test Procedures (ECM, IAH, Fuel System, ICP)
Performance Diagnostics
- Test Procedures
- Visual Inspection
- Fuel System
- Sensors
- DTCs & ECM Calibration
- KOEO Standard Test
- EGR Valve & ITV Operation
- KOEO Injector Test
- KOER Standard Test
- KOER Air Management Test (including VGT & actuator test)
- Torque Converter Stall
- Road Test
- Injector Disable
- Relative Compression
- Crankcase Pressure
- Intake Restriction
- Injection Control Pressure Tests
- Valve & Engine Brake Lash
On-Command groups:
- Aftertreatment
- Circuit Diagrams
- Diagnostic Trouble Codes
- Diagnostic Forms
- Engine Manuals
- Truck Manuals
- Tool Instructions
- Users Guide
Sections
- Frame
- Front Axle
- Springs
- Brakes
- Steering
- Prop Shaft
- Exhaust System
- Electrical
- Front End Sheet Metal
- Lubrication
- Clutch
- Engine
- Transmission
- Rear Axle
- Fuel Tanks
- Cab Wheels
- Bus Body
